mechanical screw pressing machinery

KMEC offers premium quality mechanical screw pressing machinery for processing various types of oilseeds. Our auto-matically oil press, hydraulic press and screw oil press machinery to process the materials such as corn, soybean, peanut etc. With many years’ experience of manufacturing and exporting machinery and other seed oil processing machinery all over the world, we are your trustable mechanical screw pressing machinery supplier from China. The quality of our oil screw presses is ensured by international market with favorable prices

The Structure of Mechanical Screw Pressing Machinery
The Structure of Mechanical Screw Pressing Machinery
The screw pressing machinery is composed of feeder, gearbox, pressing cage, screw shaft and edible oil extraction machine stand etc. It has better results to press olive, soybean and cotton seeds. This kind of oil screw press utilizes the screw shaft that is set-up with different styles of screws and rotates when machine is running to push the material into chamber. Then the oil is separated out through the extrusion of pressing worm and pressing ring.

Model: YZS-68 Mechanical Screw Pressing Machinery
Model: YZS-68 Mechanical Screw Pressing Machinery

Features of Mechanical Screw Pressing Machinery

Cast iron machine base;
Gear reducer system;
Main parts through the processing of high-temperature tempering and low temperature quenching;
Superior grade oil & cake;
Compact structure, stable function, simple maintenance.

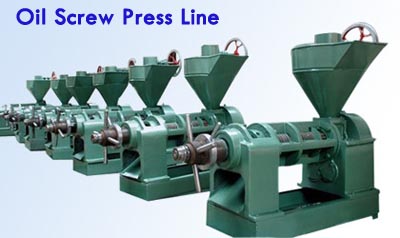

Oil Screw Press Line
Oil Screw Press Line
Technical Data

Model: YZS-68 mechanical screw pressing machinery
Capacity: 0.8-1T per 24Hours
Power: 3-Phase 5.5kW & 8HP – 1440rpm
Size: 880 x 440 x 765mm
Weight: 140kg
Get in touch with us anytime you feel interested in our mechanical screw pressing machinery or want to setting up such a oil screw press line. We are always ready to give you the best service!
